Bravo ECI 400 VDC/230 VAC DC AC Inverters 3KVA 2.5KW P/N T521D80201

Name: Bravo ECI 400 VDC230 VAC DC AC Inverters 3KVA 25KW PN T521D80201
Brand: CET
Price: 99 USD

Quality Bravo ECI 400 VDC/230 VAC DC AC Inverters 3KVA 2.5KW P/N T521D80201 wholesale

Brand Name : CET

Model Number : Bravo ECI 400 VDC/230 VAC

Certification : CE

Place of Origin : CN

MOQ : 10

Price : 99 USD

Supply Ability : 500 sets / month

Delivery Time : 2-4 weeks

Packaging Details : Wooden cartons

Brand : CET

Product Name : Inverter

Part No. : T521D80201

DC voltage (input range) : 372 Vdc

AC voltage (input range) : 230 Vac

Output power : 2.5kw

Efficiency: DC/AC : 94.5%

Efficiency: AC/AC : 95%

Weight : 4kg

Contact Now

Bravo ECI 400 VDC/230 VAC DC AC Inverters 3KVA 2.5KW P/N T521D80201

CET Brand Modular Inverters Bravo ECI 400 VDC/230 VAC 3KVA 2.5KW Inverter (P/N.:T521D80201)

Description:

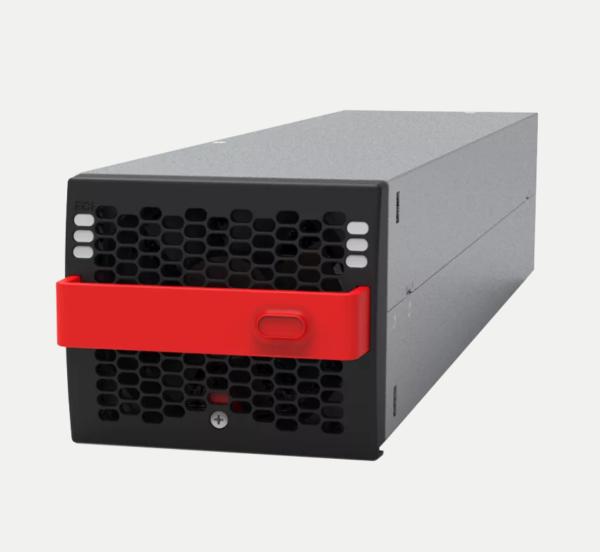

Bravo ECI – 400/230 is a compact modular inverter that converts a 400 Vdc power source into 230 Vac.

By using at least three modules, we can offer solutions for three-phase infrastructures (3x400Vac + N).

This solution is designed for high-voltage DC infrastructures.

An additional AC input is used under normal conditions to achieve an overall conversion efficiency of 96%.

In the event of a grid failure, it automatically switches to the DC to secure the loads.

Invest step-by-step in your power infrastructure with a modularity from 3 kVA to up to 450 kVA.

The hot swap feature makes maintenance easier.

The low ripple voltage avoids any disturbances on DC loads and batteries.

Key features:

1. High voltage DC (400V)

2. Extra AC input for increased efficiency

3. Compact design

4. Up to 450 kVA

5. No disturbances on DC loads & batteries

Parameters:

In: DC voltage (input range)	372 Vdc (200 – 430)
In/Out: AC voltage (input range)	230 Vac (150 – 290)
Output power	3 kVA / 2.5 kW
Efficiency: DC/AC	94.5%
Efficiency: AC/AC	96%
Temperature	-20 to 65°C (De-rating from 40°C)
Dimension	2U x 103 mm x 435 mm
Part number	T521D80201
