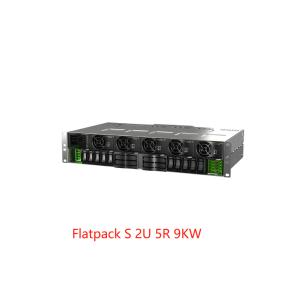

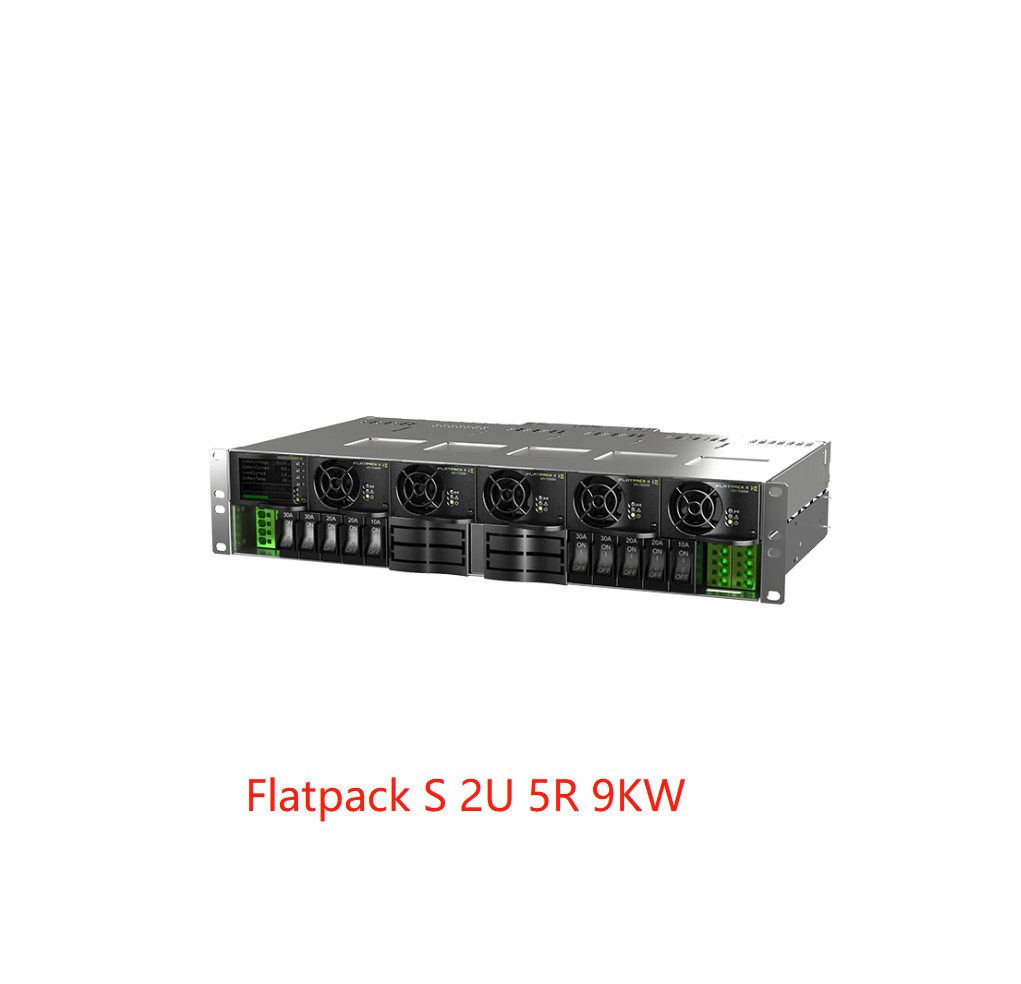

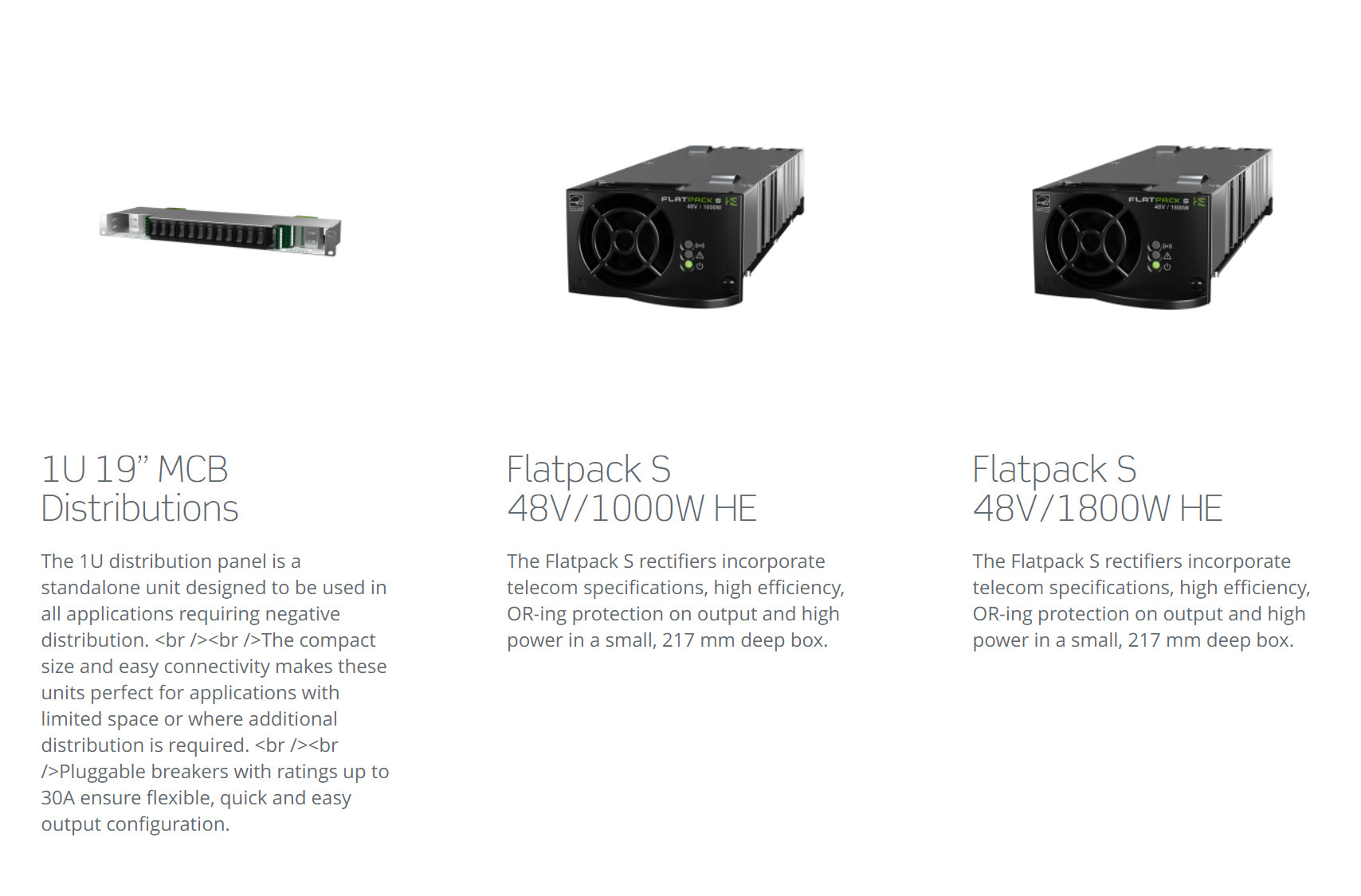

Eltek Flatpack S 2U height 9KW with Flatpack S 48/1800HE 150A (CTOS0502.nnnn)
Flatpack S 2U
This small power dense system is purely based on pluggable breakers and rectifiers and can easily be configured to fit your required application, even in field. The combination of Flatpack S HE rectifier and Smartpack S controller ensures safe, reliable and environmental friendly operation.
The shallow depth makes it suitable for most cabinets and excellent as a replacement unit. And as it is all based on the well proven Eltek technology, the Flatpack S family is the key for future needs.
Key features
l Complete system
l SmartpackS controller
l High efficiency rectifiers
l Battery distribution
l Load distribution
l 270 mm system depth
l 2U height
l Hot pluggable rectifiers
l Hot pluggable controller
l Advanced control and monitoring through ethernet port
l 4 large breaker positions for battery and load
l 10 x 30AMCB distribution
l Push-in front connection
l LVBD
l LVLD (optional)
Parameters :
| | | | | | | |
| | MODEL | 2BB + 2LB | 2BB + 2LB LVLD | 4BB | | |
| Part number (Configured Telecom Power system) | CTOS0502.nnnn | CTOS0502.nnnn | CTOS0502.nnnn |
| | INPUT DATA |
| | Voltage (range) | 85 to 305 VAC (45–66 Hz) / 85 to 250 VDC | | |
| Maximum current | 21 ARMS | | | | |
| Mains configuration | 3x single phase | | | | |
| Connection | Rear connection on Faston connectors (6.3 mm) | |
| | OUTPUT DATA |
| | Nominal voltage | -48 VDC | | | | |
| Maximum current CE | 150 ADC | | | | |
| Maximum current UR (UL recognized) | 100 ADC | | | | |
| | BATTERY DISTRIBUTION |
| | LVBD | Default | | | | |
| Plug-in Breakers (max rating) | 2x 80 A | 2x 80 A | 4x 80 A |
| Connection | Rear connection on M6 Studs, 25 mm2 max | | |
| | LOAD DISTRIBUTION |
| | LVLD (on Large Breakers) | n/a | Default | n/a |
| Plug-in Breakers Large (max rating) | 2x 80 A | 2x 80 A | n/a |
| Connection Large Breakers | Rear connection on M6 Studs, 25 mm2 max | | |
| Plug-in Breakers Small (max rating) | 10 x 30 A 1) | | | | |
| Connection Small Plug-in Breakers | Front connection Push-in terminals, 6 mm2 max | |
| CONTROL & MONITORING | | | |
| Smartpack S | 6x Input / Output and Ethernet 2) | | |
| | OTHER SPECIFICATIONS | | | |
| | Dimensions (W / H / D) | 19” / 2U / 270 mm (incl. rear terminal cover) 3) | | |
| Weight (w/o controller, rectifiers and breakers) | 6.3 kg [13.88 lbs] | | | | |
| Mounting | 19” Flush mount | | | | |
| Coding (prevents mixing of output voltages) | Coded for Flatpack S 48 V / 1000 W & 1800 W | |
| DESIGN STANDARDS | | | |
| Electrical safety | UL60950-1 / EN60950-1 | | | |
| EMC | ETSI EN 300 386 v1.6.1 EN 61000-6-1 (immunity light industry) EN 61000-6-2 (immunity industry) EN 61000-6-3 + A1 (emission light industry) EN 61000-6-4 + A1 (emission industry) | | | | |
| Environment | ETS 300 019-2-1 Class 1.2 ETS 300 019-2-2 Class 2.3 ETS 300 019-2-3 Class 3.2 Normal operating conditions as per IEC 62040-5-3:2016 clause 4.2. Other operating conditions as per IEC 62040-5-3:2016 clause 4.3, must be advised | | |
| 1) Each breaker branch (5 x B-frame breakers) rated for maximum 80 A in total 2) See Smartpack S datasheet 3) 30mm space in front and in back of the system is required for proper air flow | | |
